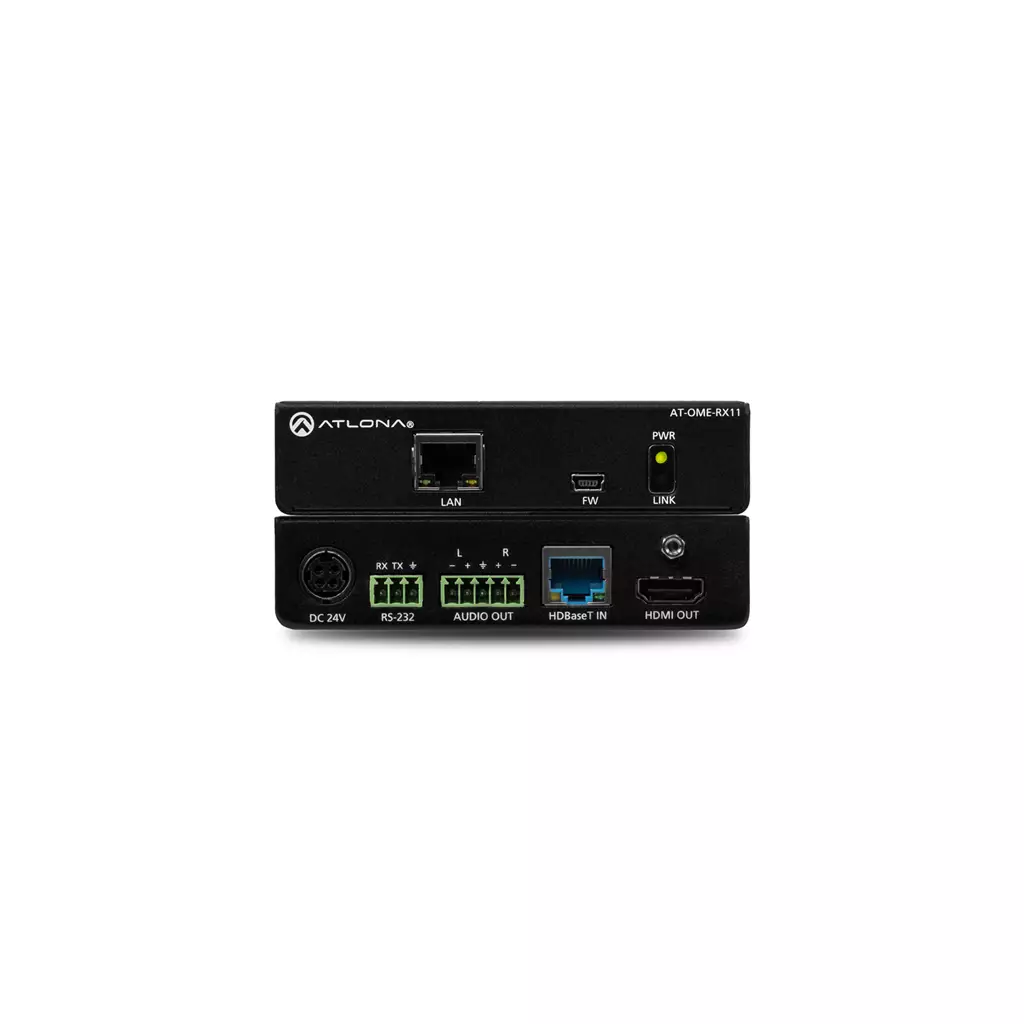

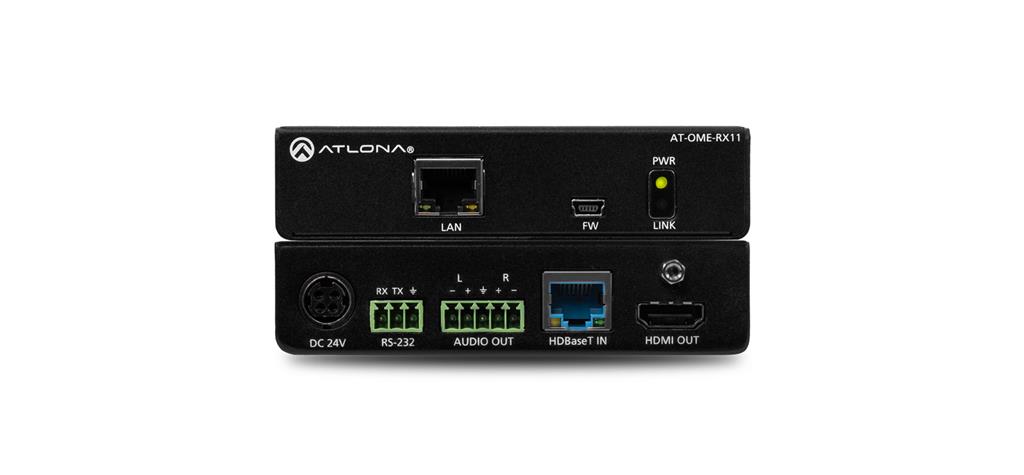

Atlona AT-OME-RX11 network extender Network transmitter & receiver Black 100 Mbit/s

About this product

<p><strong>AT-OME-RX11</strong><br /><br />&bull; HDBaseTTM receiver for HDMI? Ethernet power and control<br />&bull; 4K/UHD capability @ 60 Hz with 4:2:0 chroma subsampling<br />&bull; HDCP 2.2 compliant<br />&bull; Local AC powering &ndash; PoE (Power over Ethernet) source<br />&bull; Audio de-embedding<br /><br />The Atlona AT-OME-RX11 is an HDBaseT receiver for video up to 4K/60 4:2:0 plus embedded audio control and Ethernet over distances up to 330 feet (100 meters). Part of the Omega&trade; Series of integration products for modern AV communications and collaboration the OME-RX11 is HDCP 2.2 compliant and receives RS-232 and IP control signals. Additionally this receiver features two-channel audio de-embedding to a balanced analog audio output. The OME-RX11 is locally powered and can deliver Power over Ethernet (PoE) over HDBaseT to an Atlona Omega Series HDVS-200 Series or AT-UHD-EX-100CE-TX-PD transmitter.<br /><br />The OME-RX11 incorporates many popular integration convenience features while delivering excellent performance and value for 4K presentation applications. The Ethernet port on the OME-RX11 is for IP pass-through with the transmitter.<br /><br /><strong>Applications</strong><br /><br />&bull; Complete system integration &ndash; The OME-RX11 and an Omega Series switcher together provide a comprehensive and cost-effective integration solution for meeting rooms and other AV presentation spaces.<br />&bull; Video conferencing and interactive displays &ndash; The OME-RX11 offers a new option for legacy Atlona transmitters and switchers with HDBaseT outputs to provide audio de-embedding for feeding into an amplifier and speakers.<br /><br /><strong>Technical Features<br /><br />Video audio power and data over category cable utilizing HDBaseT technology</strong><br /><br />&bull; Receives up to 330 feet (100 meters) @ 1080p with CAT5e/6 or 4K/UHD using CAT6a/7 cable<br />&bull; Uses easy-to-integrate category cable for low-cost reliable system installation<br /><br /><strong>4K/UHD capability @ 60 Hz with 4:2:0 chroma subsampling</strong><br /><br />&bull; Compatible with sources up to 4K/60 4:2:0 and 4K/30 4:4:4<br />&bull; Supports HDMI data rates up to 10 Gbps from PCs media players and Ultra HD Blu-ray players<br /><br /><strong>HDCP 2.2 compliant</strong><br /><br />&bull; Adheres to latest specification for High-bandwidth Digital Content Protection*<br />&bull; Allows protected content stream to pass between authenticated devices<br />&bull; * HDBaseT transmitter or switcher must also be HDCP 2.2 compliant.<br /><br /><strong>Local AC powering &ndash; PoE (Power over Ethernet) source</strong><br /><br />&bull; Supplies industry standard IEEE 802.3af PoE over HDBaseT to an Omega Series HDVS-200 Series or AT-UHD-EX-100CE-TX-PD transmitter<br />&bull; Allows convenient transmitter installation at any remote location without the need for local AC power<br /><br /><strong>Audio de-embedding</strong><br /><br />&bull; De-embeds two channel PCM audio to a balanced analog audio output<br />&bull; Deliver audio to an amplifier and speakers for sound reinforcement<br /><br /><strong>Multi-channel audio compliant</strong><br /><br />&bull; Passes through multi-channel audio formats<br />&bull; Supports PCM Dolby? Digital Dolby Digital Plus&trade; Dolby TrueHD Dolby Atmos? DTS? Digital Surround&trade; DTS-HD Master Audio&trade; and DTS:X?<br /><br /><strong>Field-updatable firmware</strong><br /><br />&bull; Device can be updated in the field via the USB port<br /><br /><strong>Front panel power and signal status LEDs</strong><br /><br />&bull; LED indicators provide power and HDBaseT link status information<br />&bull; Provides convenient setup and troubleshooting<br /><br /><strong>Low-profile 1.02 inch (26 mm) high enclosure</strong><br /><br />&bull; Easy installation into confined spaces below tables in furniture and behind or above displays<br /><br /><strong>Included accessories</strong><br /><br />&bull; Installation guide surface mounting hardware and external universal power supply<br /><br /><strong>Award-winning 10 year limited product warranty</strong><br /><br />&bull; Ensures long-term product reliability and performance in commercial and residential systems<br />&bull; Specify purchase and install with confidence</p>
